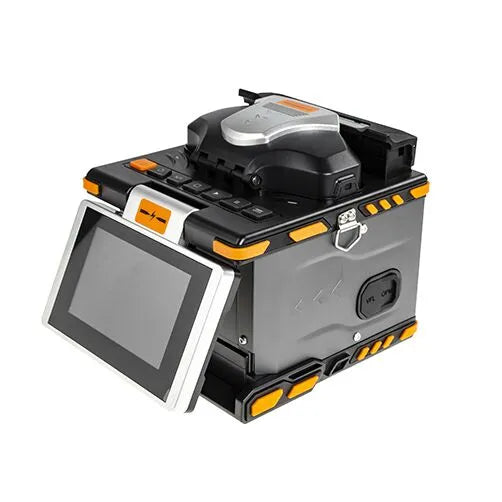

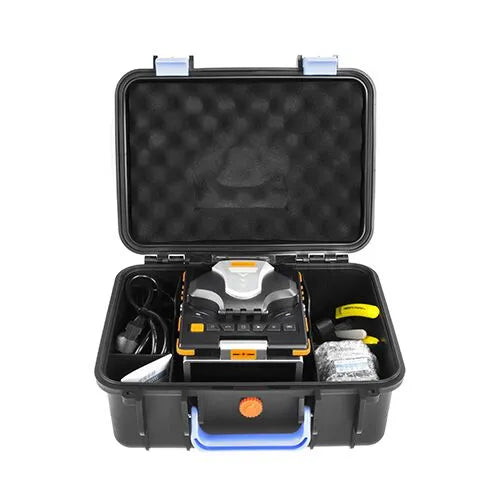

Fibre Optic Fusion Splicer is an intelligent, fully automatic fusion tool engineered for fast, accurate, and reliable splicing of SMF, MMF, DSF, and NZDSF fibers. With a 6-motor core alignment system, the M5 ensures low splice loss, higher efficiency, and precise positioning compared to traditional 4-motor models.
Designed for field engineers, telecom operators, and fibre optic contractors, this model integrates built-in VFL and Optical Power Meter (OPM), GUI operation interface, and data logging of up to 10,000 splices and 1,000 images. Whether you’re handling dense network deployment or field repairs, the M5 brings the power of speed, precision, and durability to your toolkit.
APPLICATIONS
FEATURE
| Parameter | Details |
| Applicable Fibers | SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655) |
| Fiber Diameter | Cladding: 80–150μm; Coating: 0.1–3mm |
| Splice Loss | SMF: 0.02dB, MMF: 0.01dB, DSF/NZDSF: 0.04dB |
| Alignment Method | Core and cladding alignment |
| Focusing Method | 6-motor automatic focusing |
| Welding Time | 8 seconds (typical SMF) |
| Heating Time | Typical: 18 seconds; Range: 0–60 seconds |
| Screen | 5.5″ capacitive LCD touch screen (180° flip) |
| Magnification | 300x (X/Y); 150x (synchronized X/Y) |
| Storage Capacity | 10,000 fusion records + 1,000 images |
| Electrode Life | 3,000 uses |
| Illumination | LED light; automatic/manual |
| Clamp Type | Universal three-in-one (bare, patch, leather) |
| Battery Capacity | 5200mAh; Supports 200 fusion + heating cycles |
| Charging Time | ≤3.5 hours |
| Power Supply | Input: AC100-240V 50/60Hz; Output: DC13.5V/4A |
| USB Output | 5V/500mA |
| Wavelength Range (OPM) | 850–1625nm |
| Power Measurement Range (OPM) | -70 ~ +3 dBm; Uncertainty: ±0.5% |
| Red Light Source (VFL) | ≥10mW |
| Device Size (mm) | 156 × 155 × 152 mm |
| Toolbox Size (mm) | 342 × 280 × 187 mm |
| Weight (Bare Metal) | 1.74 kg (with battery) |
| Total Weight | 4.7 kg |
| Working Temperature | -15°C to +50°C |
| Humidity Tolerance | ≤95% RH (non-condensing) |
| Storage Temperature | -40°C to +80°C |
| Battery Storage Temp. Range | -20°C to +30°C |
