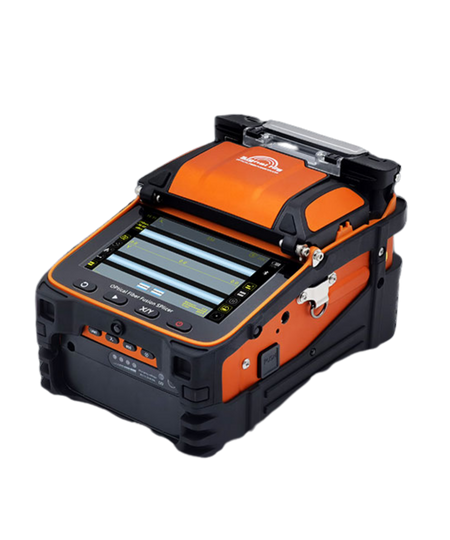

A1-9 100km Trunk Line Fusion Splicer

The A1-9 100km Trunk Line Fusion Splicer is a six-motor, core alignment fusion splicing machine built for fast, accurate fibre installation and maintenance. Designed for backbone, trunk and long-distance fibre networks, it delivers stable performance in demanding field conditions.

Powered by an industrial quad-core CPU, the A1-9 offers rapid processing, 5-second splice times and 15-second heat cycles to improve job efficiency without compromising precision. A 5-inch high-resolution LCD touchscreen provides clear fibre alignment visuals with up to 300× magnification, allowing technicians to inspect and splice with confidence.

Integrated optical power measurement (OPM) and visual fault locator (VFL) functions reduce the need for additional test equipment, making it a practical all-in-one solution for field work.

Built with a rugged metal body and protective casing, the A1-9 is designed to perform reliably in harsh environments including high altitude, desert heat and extremely cold conditions.

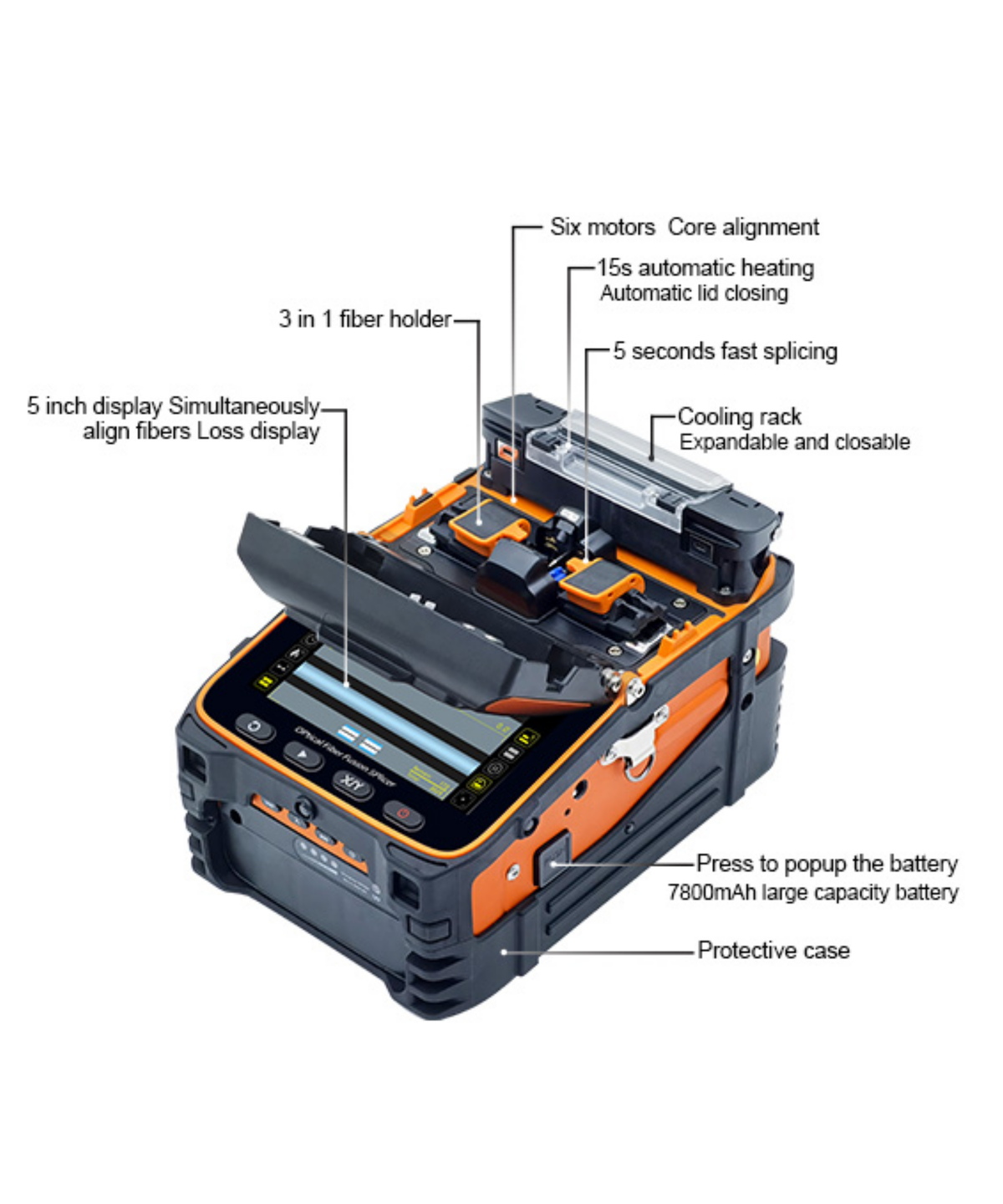

Key Features

• Six-motor automatic core alignment
• 100km trunk line capability
• 5-second fast splicing
• 15-second automatic heating
• 5-inch high-resolution LCD touchscreen
• 300× fibre magnification
• Industrial quad-core CPU for fast processing
• Integrated Optical Power Meter (OPM)
• Built-in Visual Fault Locator (VFL – red light detection)
• Automatic focusing and precision welding modes
• Heavy-duty metal body with protective casing
• Suitable for harsh environments and extreme temperatures

Performance & Efficiency

• Working efficiency up to 50% higher than standard splicers
• High-capacity lithium battery
• Capable of approximately 260 splice and heat cycles per charge
• 1-second boot time for rapid startup

Designed For

• Trunk line and backbone fibre installations
• Telecom and carrier networks
• Metro and long-haul fibre builds
• Maintenance and emergency repair work
• Field technicians requiring integrated testing functions

Power & Environment

• AC100–240V input
• DC output 13.5V / 4.8A
• Operating temperature: -15°C to +50°C
• Suitable for high altitude operation
• Dustproof, waterproof and impact-resistant design

Why Choose the A1-9?

The A1-9 is designed for technicians who need:

• Fast splicing speeds
• Reliable core alignment
• Integrated fibre testing
• Durable field-ready construction
• Reduced equipment load on site

It’s a practical, professional-grade fusion splicer built to handle demanding network installations without unnecessary complexity.
