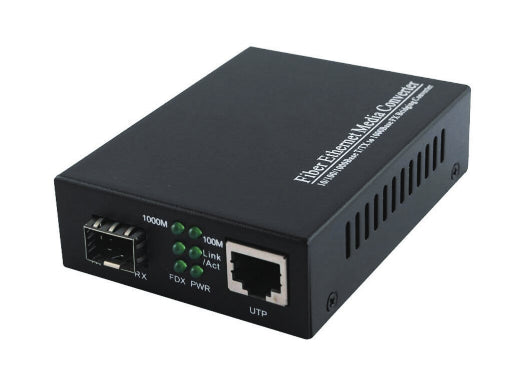

1000Base-T to 1000Base-SX/LX Converter
This series of Gigabit media converters is designed to meet the growing demands of high-speed Gigabit network deployment. It enables seamless extension of a copper-based Gigabit Ethernet network over fiber optic cable, supporting transmission distances of up to 80 km, depending on the SFP module used.
Fully compliant with IEEE 802.3z and IEEE 802.3ab standards, the converter ensures reliable and stable performance in enterprise, campus, ISP, and industrial network environments. It can be installed as a standalone unit or integrated into a standard media converter chassis for centralized management.
Installation and operation are simple and straightforward with plug-and-play functionality. Operational status can be easily monitored via diagnostic LED indicators located on the front panel.
Key Features
- Converts 1000Base-T (copper) to 1000Base-SX/LX (fibre)
- Compliant with IEEE 802.3z & IEEE 802.3ab standards
- Interface:
- 1 × RJ-45 port (10/100/1000Mbps)
- 1 × SFP slot (fiber module dependent)
- Supports MDI/MDIX auto-crossover
- Diagnostic LED indicators:
- Power
- DUP (Duplex)
- FP-LINK
- RX
- TX
- 1000Mbps
- Plug-and-Play installation
- Supports Jumbo Frames (64–9216 Bytes)
- Built-in Voltage Monitoring support
- Compatible with standard media converter chassis
